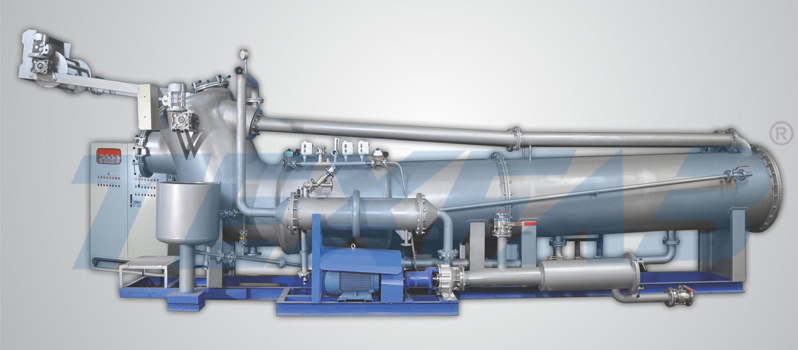

PLC based Soft Flow Dyeing machine with Pre Heating Chambers – Top Tube

‘TEXFAB’ H.T.H.P Long Tube Soft to High Flow Universal Fabric Dyeing / Scouring Machine is widely accepted because of its excellent and technical up-gradation.

Newly developed soft to high flow dyeing machine is suitable for light to heavy synthetic and cotton, knitted and woven fabric.

Innovative chamber design and dynamic liquor circulation system allows fabric speed upto 450 Mtrs/Min.

Innovative Soft to High Flow Nozzle ensures voluminous liquor interchange while avoiding twisting and pilling effect.

The special full-flooded nozzle adds advantage to this machine and can set in four different adjustable gapes. The nozzle pressure can be set right from 0.6 Kg/cm² to 2.8 Kg/cm², further water flow can also be adjust through pump which drive through motor driven with A.C. inverter. By using this special designed nozzle machine becomes universal. Same machine can be fitted with six different size of nozzle Ø40, Ø65, Ø85, Ø95, Ø115, and Ø130. Machine can dye different type of fabric: light to heavy, knitted to woven.

Overflow rinsing system which shortens rinsing time and saves water usage.

Heavy duty stainless steel centrifugal pump for optional dye liquor circulation. Thanks to turbo pump which consumes less power and high discharge of liquor.

Highly efficient heat exchanger to ensure the shortest possible dyeing cycle with fast heating and cooling.

Pressure vessel and all wet parts of machine made of stainless steel AISI 316/316L highly corrosive resistance.

All flanges, plaiter, take off roller is made out of stainless steel 304.

Bigger capacity colour Kitchen tank is available with stirrer and valves.

All safety devices required for a pressure vessel are incorporated with the machine.

Magnetic level indicator with duly calibrated in terms of litter.

Outer finish Shot Blasted.

• Feed pump to colour Kitchen Tank.
• Seam Detector.
• Fully automatic device with PLC and Pneumatic Operated
• Control Values.
